Modle

BOX-1711

Size (mm)

198x198x45mm

Indicator light

Power status indicator light,  Combined with the power button

Weight(kg)

≤ 2.2kg

Heat dissipation

Atom and 4-6 generation U series fanless passive cooling design, 6-11 generation non U series require additional fans

Colour

Space Grey

Overall Power Consumption

< 15W，After the 6th generation, the power consumption is slightly higher

aluminum alloy

Installation method

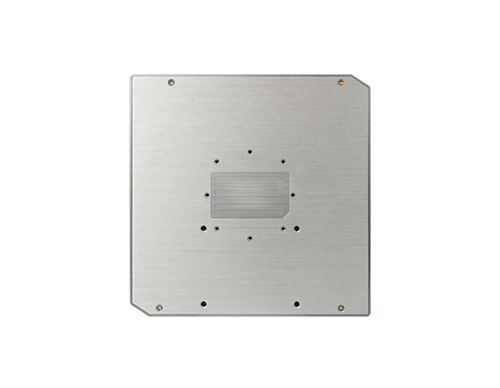

Compatible with embedded, wall mounted, and desktop versions

CPU

support Intel® Bay Trail J1900 processor

support Intel® Gemini lake J4125/J4105/N4000

support Intel®  Elkhart Lake J6412/J6413 processor

support Intel®Kaby Lake & Sky Lake processor（6-7th）

support Intel®8th  Whiskeylake &10th  Cometlake-U processor

BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Pattern display

Intel®HD  Graphics integrated graphics card

Intel UHD Graphics 600

Intel® UHD Graphics

Intel® Graphics 610

Intel® UHD Graphics

Network

Realtek RTL8111E

RTL8111H/RTL8111G

Realtek 8111H/8111G

Realtek RTL8111H/8111G

Realtek RLT8111H/8111G

Sound Effects

Realtek ALC662HD

Realtek ALC269HD

HS-100B Audio Decoding Controller

HS-100B Audio Decoding Controller

HS-100B USB Audio Decoding Controller

Memory

Single strip DDR3L  1333MHz Max 8GB

Single strip DDR4 2133/2400MHz Max 8GB

Single strip DDR4 3200MHz  Max 32GB

DDR4 2133MHz Max 32GB

DDR4 2666MHz Max 32GB

Hard drive

M-SATA 128GB

M-SATA 128GB

M.2 2280 Sata 128GB

M.2 2280 NVME 256GB

M.2 2280 NVME 256GB

Function

Supports WiFi, Bluetooth, 4G, and watchdog functions

Supports WiFi, Bluetooth, 4G, and watchdog functions

Supports WiFi, Bluetooth, 4-way, 5G modules

Supports WiFi and Bluetooth 4G modules

Support WiFi, Bluetooth, 3G/4G module, 5G module, electric auto start, hardware monitoring, network wake-up

Front I/O port interface

1 * Power on button (LED)
2 * LED (HDD, POWER)
1 * LINE OUT interface
1 * MIC-IN interface
2 * USB2.0
2 * USB3.0 (corresponding to motherboard)
2 * COM (reserved)

1 * Power on button (LED)

2 * LED (HDD, POWER)

1 * LINE OUT interface

1 * MIC-IN interface

2 * USB2.0

2 * USB3.0 corresponds to the motherboard)

2 * COM reserved)

1 * Power on button (LED)

2 * LED (HDD, POWER)

1 * LINE OUT interface

1 * MIC-IN interface

2 * USB2.0

2 * USB3.0 (corresponding to motherboard)

2 * COM reserved)

1 * Power on button (LED)

2 * LED (HDD, POWER)

1 * LINE OUT interface

1 * MIC-IN interface

2 * USB2.0

2 * USB3.0 (corresponding to motherboard)

2 * COM (reserved)

1 * Power on button (LED)

2 * LED (HDD, POWER)

1 * LINE OUT connection

1 * MIC-IN interface

2 * USB2.0

2 * USB3.0 corresponds to the motherboard)

2 * COM (reserved)

Rear I/O port interface

1*LINE-OUT interface

1*MIC-IN interface

1*LAN interface

2*USB2.0 interface

2*USB3.0 interface

1*HDMI interface

1*VGA interface

1*DC IN interface

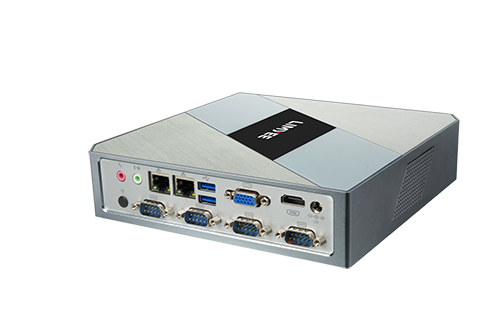

1 * Antenna
4 * COM
(Reserved)
1 * M3 grounding screw hole

1*LINE-OUT interface

1*MIC-IN interface

1*LAN interface

2*USB2.0 interface

2*USB3.0 interface

1*VGA interface

1*HDMI interface

1*DC IN interface

1 * Antenna
4 * COM (reserved)
1 * M3 grounding screw hole

1*LINE-OUT interface

1*MIC-IN interface

1*LAN interface

2*USB2.0 interface

2*USB3.2 Gen2 interface

1*VGA interface

1*HDMI interface

1*DC IN interface

1 * Antenna
4 * COM (reserved)
1 * M3 grounding screw hole

1*LINE-OUT interface

1*MIC-IN interface

1*LAN interface

2*USB2.0 interface

2*USB3.0 interface

1*VGA interface

1*HDMI interface

1*DC IN interface

1 * Antenna
4 * COM (reserved)
1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

2 * LAN interface

2 * USB3.2 Gen2 interface

1 * VGA interface

1 * HDMI interface

1 * DC IN interface

1 * Antenna

4 * COM (reserved)

1 * M3 grounding screw hole

Power

DC 12V  DC Power Supply

OS System

Windows 7 / Windows 10 / Linux

Certificate

CCC / CE / RoHs/FCC

National standard

parameter description

EMC

GB/T 9254.1-2021

Radio interference limits and measurement methods for information technology equipment

Radiated strong disturbance (B) level
Conducted strong disturbance (B) level

GB/T 17618-2015

Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011

Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1Q
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV Dc
Insulation resistance: ≥ 100MQ
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017

General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: (-20) C~(60) ℃
Storage temperature: (-20) C~(70) ℃
Constant damp heat: (40) c (95)% RH
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration 1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction,
Noise: (0) dB

Model

Product ordering information

notes

BOX-1711

J1900/DDR3L 1333MHz  4GB/M-SATA 128GB

BOX-1711

J4125/DDR4 2133/2400MHz  4GB/M-SATA 128GB

BOX-1711

J6412/DDR4 3200MHz 4GB/M.2 2280 Sata 128GB

BOX-1711

6200U/DDR4 2133MHz 8GB/M.2 2280 NVME 256GB

BOX-1711

8145U/DDR4 2666MHz 8GB/M.2 2280 NVME 256GB

USB3.2 is Gen1 5Gbps
